規格型號：65293303
頻率：32MHZ
尺寸：1612mm
PDF
產品描述：DSX1612S-32M-8-50-125-50,KDS醫療設備晶振,石英晶體諧振器,該型號晶振具備8pF負載電容,工作溫度范圍-30℃至85℃,能適配各類復雜醫療環境,無論是高溫消毒場景還是低溫存儲環境均能穩定運行.

DSX1612S-32M-8-50-125-50,KDS醫療設備晶振,石英晶體諧振器

KDS醫療級石英晶體諧振器DSX1612S-32M-8-50-125-50,以嚴苛的醫療行業標準設計生產,32MHz固定頻率輸出為醫療設備的高頻信號處理提供穩定支撐.產品采用高品質石英晶體材質,經過多道精密工藝校準,具備優異的頻率穩定性和抗干擾能力,可有效避免外部環境干擾對醫療設備運行精度的影響.8pF負載電容適配主流醫療控制芯片,-30℃~85℃寬溫工作區間滿足不同醫療場景使用需求,50Ω阻抗設計優化信號匹配,廣泛應用于血液分析儀,呼吸機等高精度醫療設備.

DSX1612S-32M-8-50-125-50,KDS醫療設備晶振,石英晶體諧振器

原廠型號 Originalmodel：	DSX1612S-32M-8-50-125-50	品牌brand：	KDS
品牌brand：	KDS	高度PackageHeight：	0.35mm
型號名稱 Modelname：	DSX1612S-	溫度OperatingTemperature	-30~85℃
Type系列：	MHz Crystal	腳位Termination：	4-Pad
頻率 frequency：	32M	封裝類型PackageType：	4-Smd
frequencytolerance頻率容差	50ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	8pF	Packaging 包裝	TapeandReel

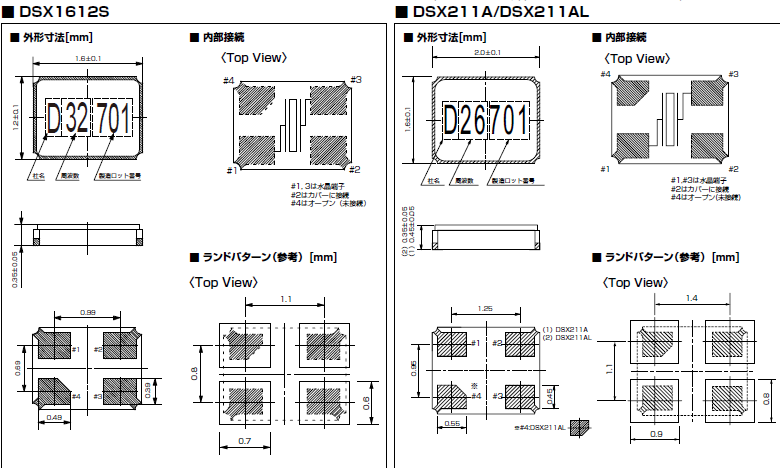

Size/Dimension尺寸	1612四腳貼片晶振	安裝方式 Installation：	Surfacemount

DSX1612S-32M-8-50-125-50,KDS醫療設備晶振,石英晶體諧振器

KDS晶振	1TJH125DR1A0004	DST1610A	1610	32.768KHZ	12.5PF	20PPM
KDS晶振	TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF080DP1AA003	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDJ1AI00S	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF080DP1AI00P	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF090DP1AI007	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF0SPDP1AI008	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF125DP1AI009	DST310S	3215	32.768KHZ	12.5PF	20PPM
KDS晶振	1TJF090DP1AA00L	DST310S	3215	32.768KHZ	9PF	20PPM
KDS晶振	1TJF080DP1AA00K	DST310S	3215	32.768KHZ	8PF	20PPM
KDS晶振	1TJF0SPDP1AA00G	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TJF0SPDN1A000B	DST310S	3215	32.768KHZ	10.0PF	20PPM
KDS晶振	1TD125DGNS003	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS036	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD125DHNS002	DT-26	206	32.768KHZ	12.5PF	20PPM
KDS晶振	1TD060DHNS014	DT-26	206	32.768KHZ	6.0PF	20PPM
KDS晶振	1TD125BHNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD075BHNS001	DT-26	206	32.768KHZ	7.5PF	10PPM
KDS晶振	1TD125BFNS001	DT-26	206	32.768KHZ	12.5PF	10PPM
KDS晶振	1TD1001HNS001	DT-26	206	32.768KHZ	10.0PF	-6/+2PPM
KDS晶振	1TD1250HNS005	DT-26	206	32.768KHZ	12.5PF	30/40P
KDS晶振	1TC125DFNS030	DT-38	308	32.768KHZ	12.5PF	20PPM
KDS晶振	1TC125NFNS002	DT-38	308	32.768KHZ	12.5PF	1000PPM
KDS晶振	1TC125AFSS003	DT-38	308	32.768KHZ	12.5PF	5PPM
KDS晶振	1TC250E65	DT-38	308	32.768KHZ	12.5PF	+12/+28PPM
KDS晶振	1C240000AB0G	DSX321G	3225	40.000MHZ	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6MHZ	10PF	30PPM
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332MHZ	12PF	20PPM
KDS晶振	1ZZNAE26000AB0J	DSX211SH	2016	26.000MHZ	7PF	10PPM
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408MHZ	16PF	50PPM
KDS晶振	1AJ250004B	SMD-49	11*4.6	25.000MHZ	20PF	30PPM
KDS晶振	1ZZCAA24000BE0B	DSX211G	2016	24.000MHZ	10PF	20PPM
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000MHZ	11PF	12PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000MHZ	10PF	30PPM
KDS晶振	1N240000AB0J	DSX321G	3225	40.000MHZ	15PF	15PPM
KDS晶振	1XSE098304AR2	DSO321SR	3225	98.304MHZ	3.3V	50ppm
KDS晶振	1AJ100005B	SMD-49	11*4.6	10.000MHZ	12PF	50PPM
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000MHZ	7PF	10PPM
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000MHZ	16PF	50PPM
KDS晶振	1AJ240006AK	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ240006BB	SMD-49	11*4.6	24.000MHZ	16PF	30PPM
KDS晶振	1AJ245765C	SMD-49	11*4.6	24.576MHZ	18PF	30PPM
KDS晶振	ZC08759	DSO211AH	2016	25.000MHZ	3.3V	50ppm
KDS晶振	1AR270002GA	SMD-49	11*4.6	27.000MHZ	12.9PF	20PPM
KDS晶振	1AR304002A	SMD-49	11*4.6	30.400MHZ	12PF	50ppm
KDS晶振	1XXD16367MAA	DSB211SDN	2016	16.367MHZ	3.3V	1.5ppm
KDS晶振	ZC12467	DSA211SDN	2016	16.32MHZ	3.3V	1.5ppm
KDS晶振	1XXB16367MAA	DSB221SDN	2520	16.367MHZ	2.8V	1.5ppm
KDS晶振	1XXB16369JFA	DSB221SDN	2520	16.369MHZ	3.3V	1.5ppm
KDS晶振	ZC09382	DSA535SG	5032	18.432MHZ	3.3V	1.5ppm
KDS晶振	ZC12456	DSB211SDN	2016	16.320MHZ	3.3V	1.5ppm
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000MHZ	12PF	15ppm
KDS晶振	ZC12965	DSA321SDN	3225	23.04MHZ	3.3V	1.5ppm
KDS晶振	ZC13727	DSX221SH	2520	24.000MHZ	10PF	30ppm
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000MHZ	9PF	10ppm
KDS晶振	X1H013000B81H	HSX531S	5032	13.000MHZ	8PF	10ppm
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000MHZ	10PF	20ppm
KDS晶振	1XSE009600AV	DSO321SV	3225	9.6MHZ	3.3V	100ppm
KDS晶振	1XSE012000AR58	DSO321SR	3225	12.000MHZ	3.3V	50ppm
KDS晶振	1ZZNAE48000ZZ0R	DSX211SH	2016	48.000MHZ	7PF	20PPM
