規格型號：90992030
頻率：25MHz
尺寸：3225mm
PDF
產品描述：E3FB25E00000AE,Hosonic臺產進口晶振,無線控制器設備晶振,頻率特性精準匹配無線控制器的通信協議要求,在復雜環境下仍能維持穩定的振蕩輸出,確保設備與終端之間的信號傳輸流暢無延遲.

E3FB25E00000AE,Hosonic臺產進口晶振,無線控制器設備晶振

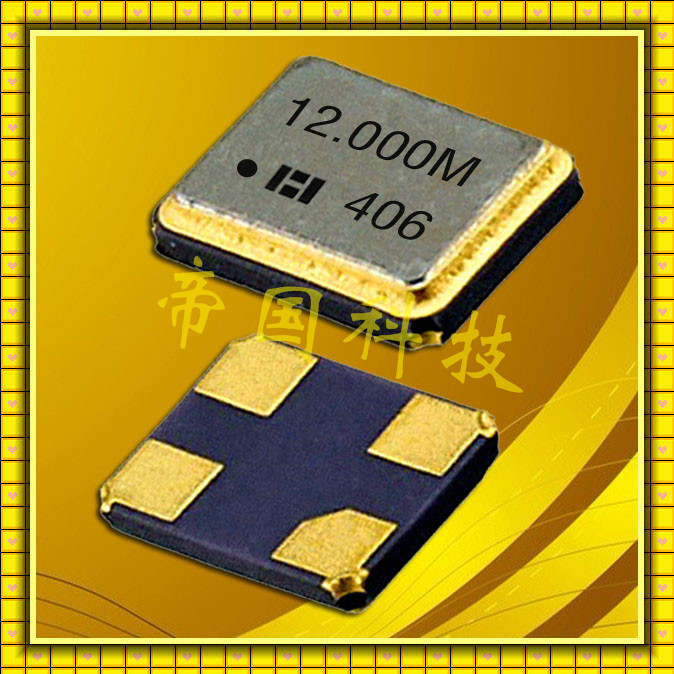

E3FB25E00000AE無線控制器專用晶振,由中國臺灣Hosonic鴻星晶振品牌原裝進口,核心參數經過嚴格校準,頻率偏差極小,能為無線控制器的微處理器提供精準時鐘信號,保障設備指令解析與執行的準確性.產品具備優良的溫度適應性,在不同溫濕度環境下均能穩定工作,適配戶外,工業車間等多場景無線控制器使用.臺產原廠品質保障,使用壽命長,故障率低,是無線控制器研發生產及售后維修的優選元器件.

E3FB25E00000AE,Hosonic臺產進口晶振,無線控制器設備晶振

原廠型號 Originalmodel：	E3FB25E00000AE	品牌brand：	Hosonic
品牌brand：	Hosonic	高度PackageHeight：	0.9mm
型號名稱 Modelname：	E3FB	溫度OperatingTemperature	-20+70℃
Type系列：	MHz Crystal	腳位Termination：	4-Pad
頻率 frequency：	25M	封裝類型PackageType：	4-smd
frequencytolerance頻率容差	20PP	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	12PF	Packaging 包裝	TapeandReel

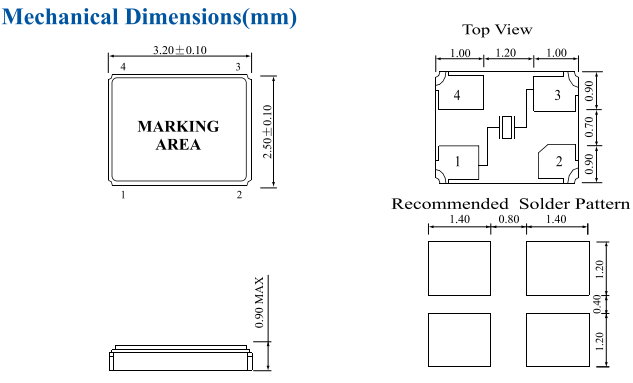

Size/Dimension尺寸	3225無源貼片晶振	安裝方式 Installation：	Surfacemount

E3FB25E00000AE,Hosonic臺產進口晶振,無線控制器設備晶振

E3FB25E00000AE,Hosonic臺產進口晶振,無線控制器設備晶振

E3SB25E00003FE	HOSONIC鴻星晶振	E3SB	MHz Crystal	25 MHz	±15ppm	±15ppm	18pF
E3SB24E004000E	HOSONIC鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E3SB32E001500E	HOSONIC鴻星晶振	E3SB	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
E3SB37E0X0004E	HOSONIC鴻星晶振	E3SB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E3SB25E001803E	HOSONIC鴻星晶振	E3SB	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF
E3SB16E0X000WE	HOSONIC鴻星晶振	E3SB	MHz Crystal	16.384 MHz	±10ppm	±10ppm	10pF
E3SB27E0X000VE	HOSONIC鴻星晶振	E3SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF
E3SB27E00000DE	HOSONIC鴻星晶振	E3SB	MHz Crystal	27 MHz	±10ppm	±10ppm	10pF
E3SB50E00000AE	HOSONIC鴻星晶振	E3SB	MHz Crystal	50 MHz	±10ppm	±10ppm	18pF
E3SB26E000011E	HOSONIC鴻星晶振	E3SB	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
E2SB40E000104ECBB8	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	HOSONIC鴻星晶振	E2SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
E3SB8E0000003E	HOSONIC鴻星晶振	E3SB	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
E2SB40E000107E	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	7pF
E1SB24E00001EE	HOSONIC鴻星晶振	E1S	MHz Crystal	24 MHz	±30ppm	±30ppm	18pF
E1SB26E007902E	HOSONIC鴻星晶振	E1SB	MHz Crystal	26 MHz	±15ppm	±10ppm	9pF
E3SB24E00000QE	HOSONIC鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E3SB40E00010JE	HOSONIC鴻星晶振	E3SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E3SB12E000022E	HOSONIC鴻星晶振	E3SB	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
E3SB16E000028E	HOSONIC鴻星晶振	E3SB	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF
E3SB40E00090DE	HOSONIC鴻星晶振	E3SB	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E3SB38E0X0006E	HOSONIC鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E3SB40E00010KECBB8	HOSONIC鴻星晶振	E3SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
E3SB39E000006E	HOSONIC鴻星晶振	E3SB	MHz Crystal	39 MHz	±15ppm	±8ppm	10pF
E3SB38E0X1806E	HOSONIC鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±20ppm	±20ppm	10pF
E3SB48E000801ECBB8	HOSONIC鴻星晶振	E3SB	MHz Crystal	48 MHz	±10ppm	±10ppm	12pF
E3SB12E00004EE	HOSONIC鴻星晶振	E3SB	MHz Crystal	12 MHz	±35ppm	±8ppm	12pF
E1SB60E003701E	HOSONIC鴻星晶振	E1S	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E1SB55E0X0002E	HOSONIC鴻星晶振	E1SB	MHz Crystal	55.2 MHz	±10ppm	±10ppm	10pF
E2SB27E0X0000E	HOSONIC鴻星晶振	E2SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	HOSONIC鴻星晶振	E2SB	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
ETSB37E0X0014E	HOSONIC鴻星晶振	ETSB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	HOSONIC鴻星晶振	ETSB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB24E000007E	HOSONIC鴻星晶振	E1SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E1SB25E000009E	HOSONIC鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	6pF
E1SB24E004000E	HOSONIC鴻星晶振	E1S	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E1SB38E0X0001E	HOSONIC鴻星晶振	E1S	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB39E000000E	HOSONIC鴻星晶振	E1SB	MHz Crystal	39 MHz	±13ppm	±8ppm	10pF
E1SB40E00090AECBB8	HOSONIC鴻星晶振	E1S	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E1SB48E000506E	HOSONIC鴻星晶振	E1S	MHz Crystal	48 MHz	±16ppm	±8ppm	11.1pF
E1SB25E001000E	HOSONIC鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF
E1SB32E007900E	HOSONIC鴻星晶振	E1SB	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
E1SB32E001502E	HOSONIC鴻星晶振	E1SB	MHz Crystal	32 MHz	±20ppm	±10ppm	12pF
E2SB12E000005E	HOSONIC鴻星晶振	E2SB	MHz Crystal	12 MHz	±20ppm	±20ppm	12pF
E1SB37E0X0002E	HOSONIC鴻星晶振	E1S	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E1SB32E001501ECBB8	HOSONIC鴻星晶振	E1S	MHz Crystal	32 MHz	±10ppm	±10ppm	9pF
E1SB16E000004E	HOSONIC鴻星晶振	E1SB	MHz Crystal	16 MHz	±10ppm	±10ppm	8pF
ETSB24E000003E	HOSONIC鴻星晶振	ETSB	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	HOSONIC鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	HOSONIC鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	HOSONIC鴻星晶振	ETSB	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	HOSONIC鴻星晶振	ETSB	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E3SB14E0X0002E	HOSONIC鴻星晶振	E3SB	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	12pF
E3SB10E000007E	HOSONIC鴻星晶振	E3SB	MHz Crystal	10 MHz	±30ppm	±30ppm	12pF
E3SB25E00000DE	HOSONIC鴻星晶振	E3SB	MHz Crystal	25 MHz	±10ppm	±10ppm	10pF
E3FB24E00000KE	HOSONIC鴻星晶振	E3FB	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
E3SB48E00000TE	HOSONIC鴻星晶振	E3SB	MHz Crystal	48 MHz	±30ppm	±30ppm	18pF
E3SB50E00002AE	HOSONIC鴻星晶振	E3SB	MHz Crystal	50 MHz	±18ppm	±7ppm	9pF
